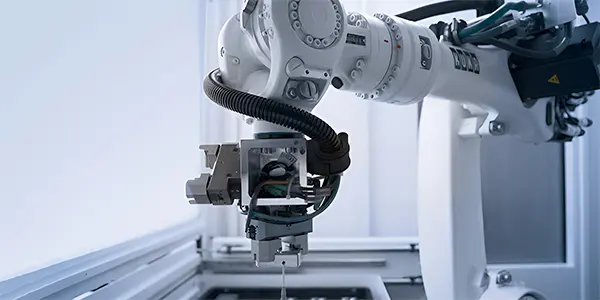

İnsan-makine işbirliğine dayalı robot, korkuluklara gerek yoktur, kullanımı kolay ve rahattır.
Robotların tam otomatik üç boyutlu çevrimiçi denetimi, aynı iş parçasını programlayarak toplu tam otomatik denetimi tamamlayabilir.
İnsan-makine işbirliğine dayalı robot, korkuluk gerektirmez, kullanımı kolay ve rahattır.
0,01 mm’ye kadar hassasiyet, çevresel parazitlere karşı güçlü direnç
| Specification | Parameters |
|---|---|
| Model | Scan cobot P |
| Scanning mode | Non-contact three-dimensional scanning (photographic three-dimensional scanning) |
| Projection, grating technology | Microstructure light projection and extrapolation multi-frequency phase shift technology |
| Calibration Technique | Loop coding calibration (13 steps) |
| Single scan range (mm) | Independent mode: 400×300, 100×75 Regulatory mode: 200×150, 50×40 |
| Single measurement accuracy (mm) | ±0.01 |
| Single-sided scanning time (s) | ＜5，＜3 |
| Splicing method | Automatic intelligent splicing, manual feature splicing |
| Scannable object range (mm) | 30～1500 |
| Average sampling point distance (mm) | 0.06-0.47 |
| Industrial three-dimensional photogrammetry (Accuracy) | Support industrial three-dimensional photogrammetry splicing project coordinate point file import |
| Industry camera Resolution (pixels) | 1.31, 5, 8 million pixels |
| Camera angle (degree) | 18 degrees, 27 degrees, 32.5 degrees |
| Industrial lens (mm) | 8, 12, 16, 25, 35 depending on the model configuration |
| Calibration unit | Metal / Glass / Granite |
| Industrial operation table | Mobile tripod / professional workbench / heavy operating frame |
| Data output format | ASC, STL, PLY, IGES |
| Operating system | Windows XP / Windows 7 / Windows 10 32-bit / 64-bit Chinese / English |
| Light source, energy (W) | Standard 100 W halogen LED, 50 W high-energy LED (White); high-energy lamp (HPL) 250 W halogen lamp |
| Calibration board | Square granite material calibration plate |
| Working temperature, power supply | 0～40℃, 100～240V AC |
| Examining report | The equipment accuracy test report and calibration version accuracy test report issued by the metrology quality inspection institute |
| Camera platform | 360 degree free adjustment platform before and after |
| Scanister System Size (mm) | 440x140x120 |
| System weight (kg) | 2.5 |
