Hassas modda 0,01 mm’ye kadar doğruluk
İşaret noktalarının sayısı yarıya indirildi
34 lazer çizgisi + derin delikleri taramak için 1 ışın + ayrıntıları taramak için 17 ışın

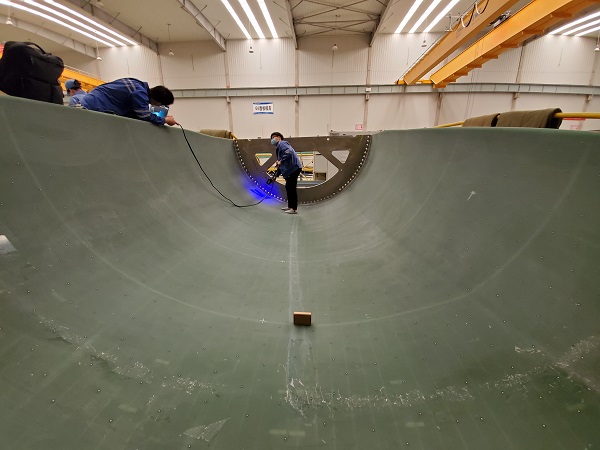

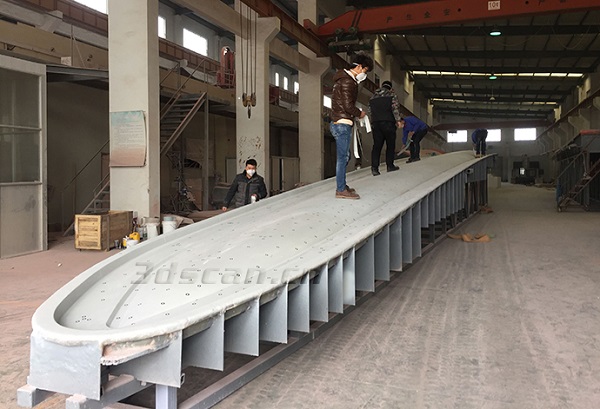

Tek çerçeve tarama alanı 600*550 mm’ye ulaşabilir, bu da büyük iş parçalarının taranmasını kolaylaştırır

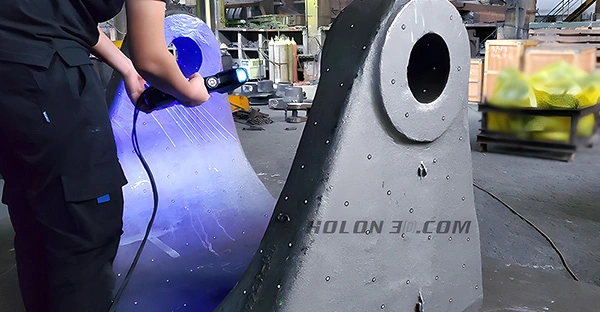

Derin deliklerin çıkmaz uçlarının tek ışınlı taraması

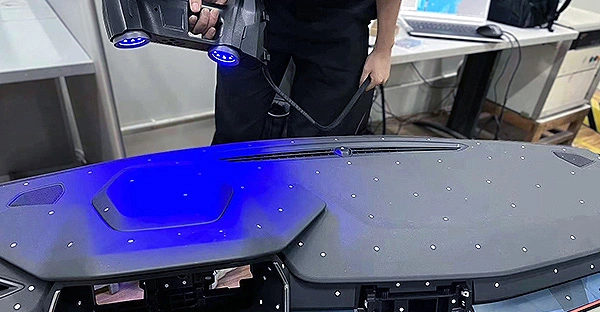

Hassas mod tarama ayrıntıları
Standart mod geniş aralık tarama
| Specification Parameters | Details |
|---|---|
| Model | Model 52 |
| Light source | 52 blue laser lines (wavelength: 450nm) |
| Measurement Rate | 4,200,000 points/s |
| Scan mode | Wide-Range mode: 34 crossed blue laser lines Standard mode: 17 crossed blue laser lines Precision mode: 1 blue laser line Deep hole mode |
| Data precision | 0.02mm (Wide), 0.01mm (Standard), 0.02mm (Precision) |
| Scanning distance | 370mm (Wide), 200mm (Standard), 370mm (Precision) |
| Scan depth of field | 550mm (Wide), 200mm (Standard), 550mm (Precision) |
| Resolution | 0.01mm (max) |
| Scanning area | 600x550mm (max) |
| Scanning range | 0.1–10m (expandable) |
| Volume Accuracy (Photogrammetry) | 0.02+0.03mm/m |
| Photogrammetry Integration Accuracy | 0.02+0.015mm/m (with Global 3D Photogrammetry System) |
| Operating software | HLScan (free lifetime upgrade) |
| Data formats | asc, stl, ply, obj, igs, wrl, xyz, txt, etc. (customizable) |
| Compatible software | 3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5, SolidWorks), PTC (Pro/ENGINEER), Siemens (NX, Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) |
| Data transmission | USB 3.0 |
| Computer configuration (optional) | Win10 64-bit; video memory: 4GB+; processor: I7-13700+; RAM: 64GB |
| Laser safety level | ClassⅡ (eye safety) |
| Laser Certification Number | LCS200726001DS |
| Weight | 0.92Kg |
| Size | 310x80x139mm |
| Temperature / Humidity | -10—40℃；10–90% |
| Power supply | Input: 100–240V, 50/60Hz, 0.9–0.45A; Output: 24V, 1.5A, 36W (max) |
| Certification | CE, IC, FCC, ROHS, ISO9001 |
| Patent | ZL201220386542.3, ZL201220386546.1, ZL201520174157.6, ZL201721695684.7, ZL201520174106.3, ZL201420058854.0, ZL201721376035.0, ZL201330658475.6, ZL201130007136.2, ZL201130007145.1, ZL201130007141.3, ZL201720362488.1, ZL201720349729.9, ZL201720362493.2, ZL201720369852.7, ZL201720369914.4, ZL201720369921.4, ZL2021102492208.4 |
| Warranty | 24 months |
