Büyük Ölçekli Genel Kullanılan Robot
Büyük Ölçekli Genel Kullanılan Robot

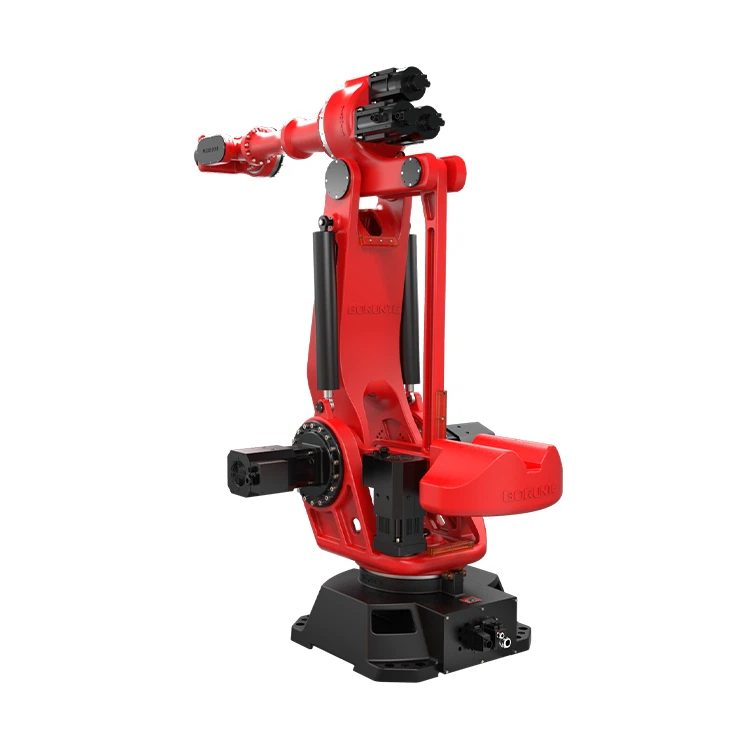

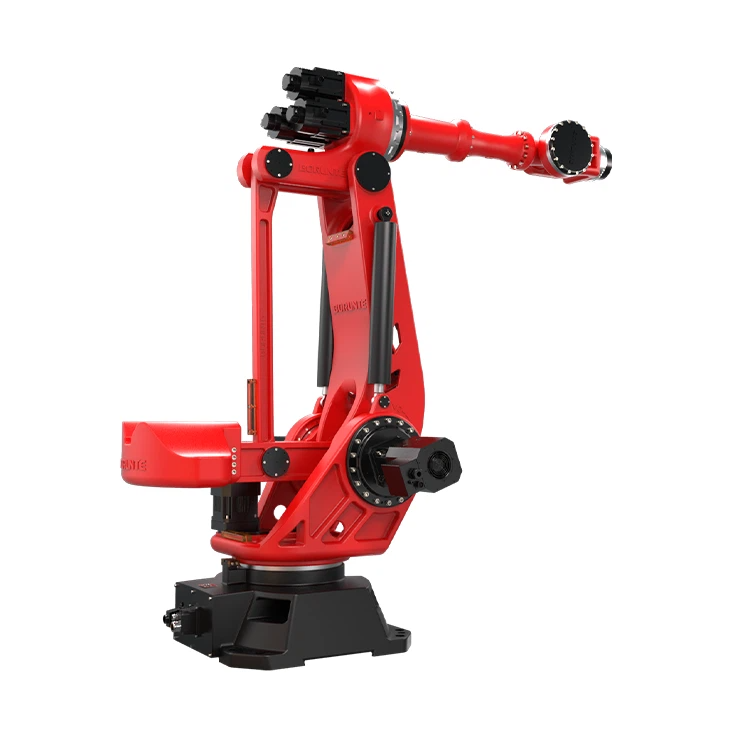

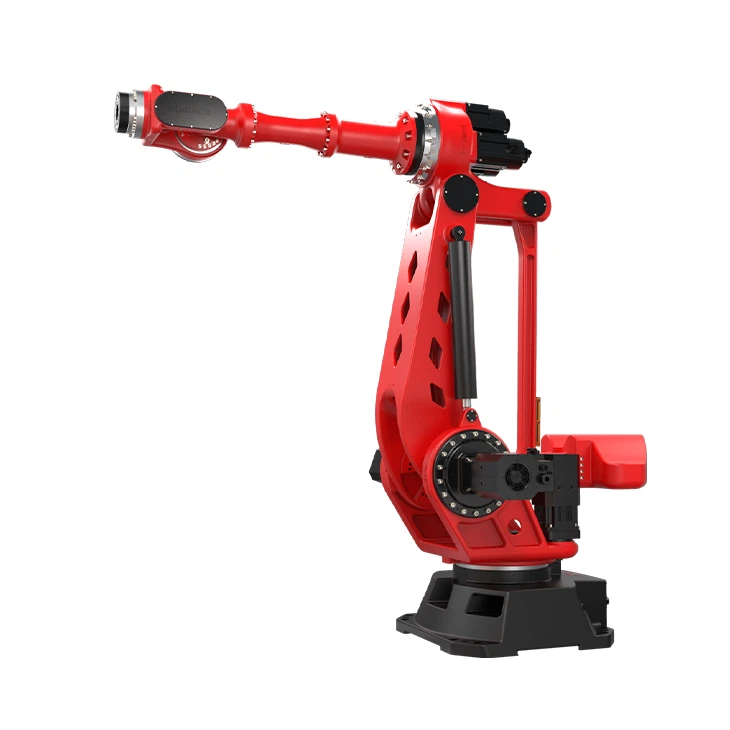

Large scale general used robot is a multi-functional robot with six degrees of freedom is employed on a large scale in production. Its distinguishing features include a wider manipulator arm and a high load capacity. The maximum load is 500kg, making it suited for a wide range of industrial settings. The usage of robots can reduce task completion time while improving product quality. It may also operate 24 hours a day, significantly increasing productivity.
BRTIRUS3050B adopt
BRTIRUS3050B’s body joint is made of high-strength cast iron to ensure the high strength, high speed, high precision and high stability of the robot.
|
| 3006mm | |
| 500Kg | ||
| ±0.5mm | ||
| 65.8KVA | ||
| 59.3KW | ||
| Body IP54 | ||
| About 3200Kg | ||
|
| J1 | -160 degree ~+160 degree |
| J2 | -60 degree ~+55 degree | |
| J3 | -60 degree ~+20 degree | |
| J4 | -180 degree ~+180 degree | |
| J5 | -110 degree ~+110 degree | |
| J6 | -360 degree ~+360 degree | |
|
| J1 | 65.5 degree /s |
| J2 | 61.7 degree /s | |
| J3 | 61.7 degree /s | |
| J4 | 99.8 degree /s | |
| J5 | 94.5 degree /s | |
| J6 | 152.4 degree /s | |
|
| J6 | 930N*M |
| J5 | 2600N*M | |
| J4 | 2600N*M | |
| 2) | J6 | 296KG*M² |
| J5 | 1015KG*M² | |
| J4 | 1015KG*M² |
• The ambient temperature should be between 0 and 45 degree C (32 to 113 degree F) during operation and -10 to 60 degree C (14 to 140 degree F) during handling and maintenance.
• Must be used in an environment with an average altitude of 0-1000M.
• The humidity must be below the dew point (less than 10% relative humidity).
• Locations where the vibration or impact energy of the robot is small (vibration below 0.5G).
